Understanding ATEX Directive and Its Relationship with IoT

TagoIO Team

Dashboard templates for IoT applications

In industrial safety, the ATEX Directive is a pivotal regulatory framework designed to ensure the protection of workers and equipment in environments prone to explosive atmospheres. Here, we delve into the directives, their relevance to the Internet of Things (IoT), and their impact across various industries.

What is the ATEX Directive?

The ATEX Directive, formally known as Directive 2014/34/EU, outlines the essential health and safety requirements for equipment used in explosive atmospheres within the European Union. It encompasses both the manufacturer's responsibilities in producing safe equipment and the obligations of employers to ensure safe working conditions.

Explosive atmospheres can occur due to flammable gases, vapors, mists, or combustible dust, which can ignite and cause fires or explosions when mixed with air. The directive categorizes equipment into two groups based on the type of explosive atmosphere they are designed to operate in:

ATEX Category 1: Equipment suitable for use in zones where explosive atmospheres are present frequently or for long periods.

ATEX Category 2: Equipment suitable for use in zones where explosive atmospheres are likely to occur occasionally.

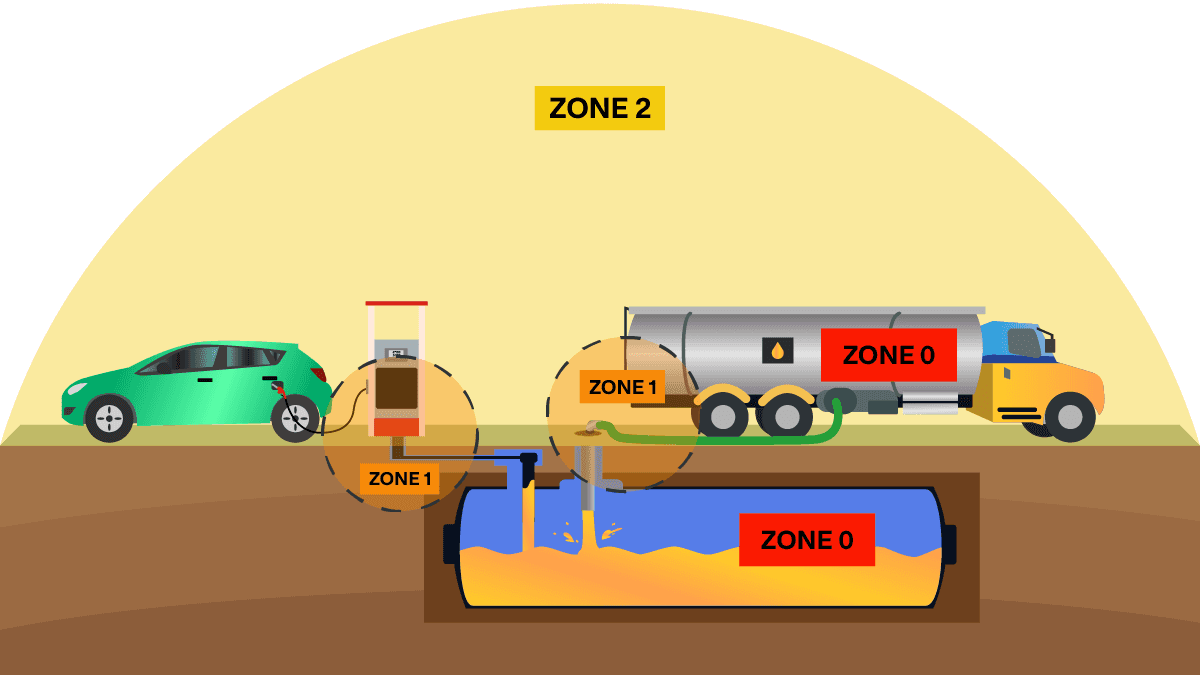

The areas prone to the formation of explosive atmospheres are called ATEX Zones or IECEx Zones. Below is an illustration depicting the transport fuel delivery process as an example

ATEX and the Internet of Things (IoT)

The Internet of Things has revolutionized industrial operations by enabling the connection and communication of devices, sensors, and systems. In the context of ATEX, IoT technologies play a crucial role in enhancing safety and efficiency in hazardous environments:

Sensors: IoT-enabled sensors equipped with ATEX certification can monitor various environmental parameters such as gas concentrations, temperature, pressure, and humidity in real-time. These sensors transmit data wirelessly, allowing for remote monitoring and predictive maintenance.

Data Integration: IoT platforms, such as TagoIO, integrate data from ATEX-certified sensors with other operational data, providing insights into potential hazards, optimizing processes, and enabling timely responses to prevent incidents.

Automation: IoT facilitates the automation of safety protocols and emergency responses in hazardous zones, reducing human intervention and enhancing overall safety.

Industries and Applications

ATEX-certified products are essential across a wide range of industries where explosive atmospheres are present, including:

Oil and Gas: Exploration, refining, and transportation.

Chemical: Production facilities handling flammable substances.

Mining: Extraction and processing operations.

Pharmaceutical: Manufacturing environments with potentially combustible dust.

Food and Beverage: Processing facilities where flammable gases or vapors may be present.

In the oil and gas industry, for example, where hazardous environments are common, ATEX-certified IoT devices play a crucial role in ensuring safety and operational efficiency. Here are some examples of ATEX-certified IoT devices that are commonly used in the oil and gas sector:

1. ATEX-Certified Gas Sensors: These sensors detect the presence of flammable gases like methane, propane, or hydrogen sulfide. They provide real-time data on gas concentrations in potentially explosive atmospheres, enabling proactive measures to prevent accidents.

2. Wireless Temperature and Pressure Sensors: These sensors are designed to withstand harsh conditions typical in oil and gas operations. They monitor equipment temperature and pressure remotely, helping to detect anomalies that could lead to equipment failure or hazardous situations.

3. ATEX-Certified CCTV Cameras: These cameras are equipped to operate in environments where combustible dust or gases may be present. They provide visual monitoring of critical areas such as storage tanks, pipelines, or offshore platforms, enhancing security and safety monitoring.

4. IoT-Enabled Asset Tracking Devices: These devices use GPS and RFID technology to track the location and status of equipment, vehicles, and personnel in real time. They ensure efficient asset management and help in emergency response situations.

5. Wireless Emergency Stop Buttons: These devices allow workers to shut down equipment or processes quickly in case of emergencies. They are designed to operate in hazardous environments and transmit immediate alerts to control centers.

6. ATEX-Certified Wearable Devices: These devices include wearable gas detectors, personal alarm systems, and communication devices that allow workers to maintain contact and receive alerts even in remote or hazardous locations.

Some of these IoT devices can be based on LoRaWAN, satellite, cellular, or another type of connectivity. At TagoIO, these devices can be easily integrated into the platform. Some examples include TEKTELIC, TWTG, and WIKA Instrument.

Conclusion

The ATEX Directive not only mandates the safe operation of equipment in hazardous areas but also aligns with the transformative capabilities of IoT. By leveraging ATEX-certified IoT solutions, industries can achieve enhanced operational efficiency, improved safety standards, and compliance with regulatory requirements. As IoT continues to evolve, its integration with ATEX standards will likely play an increasingly pivotal role in ensuring the safety and productivity of industrial environments across Europe and beyond. Visit our list of integrated IoT devices and install some of our dashboard templates at no additional cost.
